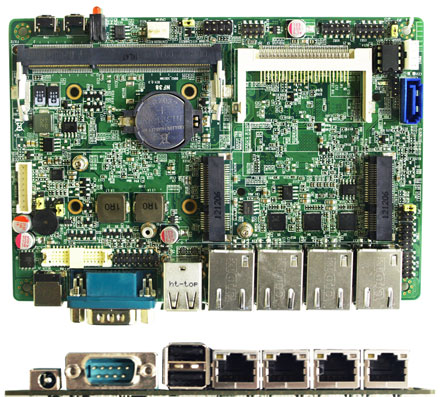

Jetway NF38-525 (Intel PineTrail-M)

PRODUCT IS CURRENTLY NOT AVAILABLE !
Jetway NF38-525 (Intel PineTrail-M)

  • INTEL® Pine Trail-D Processor D525+ ICH8M Chipset
  • Support 1 * DDR3 667/800MHz Single CH up to 2GB
  • 3.  Support 1 * Serial ATAII (3Gb/s) Devices
  • 1 * 18 bits Single Channel LVDS header
  • Supports 4 * Realtek RT8111EVL Gigabit LAN
  • Provides 2 * Mini PCI-E socket (one support mSATA card)
  • Provides 1 * CF card socket (can support both CF card & CF SATA card)
  • Provides 1 * SIM card socket (optional)
  • Provides front I/O card for 4 * LAN LED indicators
  • Support CPU Smart FAN
  • Compliance with ErP standard
  • 148 x 102mm 3.5” SBC Form Factor
[more]

Share

RAM :

SSD (mSATA):

Build/Install:

  • INTEL® Pine Trail-D Processor D525+ ICH8M Chipset
  • Support 1 * DDR3 667/800MHz Single CH up to 2GB
  • 3.  Support 1 * Serial ATAII (3Gb/s) Devices
  • 1 * 18 bits Single Channel LVDS header
  • Supports 4 * Realtek RT8111EVL Gigabit LAN
  • Provides 2 * Mini PCI-E socket (one support mSATA card)
  • Provides 1 * CF card socket (can support both CF card & CF SATA card)
  • Provides 1 * SIM card socket (optional)
  • Provides front I/O card for 4 * LAN LED indicators
  • Support CPU Smart FAN
  • Compliance with ErP standard
  • 148 x 102mm 3.5” SBC Form Factor

Product Accessories
- Front I/O card
- Front panel cable
- NIC LED cable
- USB cable
- Manual
- CD
- 1x SATA cable
- SATA power cable

CPU INTEL® Pine Trail-D Processor D525 (1.86GHz)
Chipset INTEL®ICH8M Express chipset
Memory 1 * DDR3 667/800MHz Single CH SO-DIMM up to 2GB
Expansion Slots 2 * full size Mini PCI-E
Storage 1 * Serial ATAII 3Gb/s connectors
1 * mSATA socket (Share with one of Mini PCI-E socket)
Audio N/A
Ethernet LAN 4 * RTL8111E PCI-EVL Gigabit LAN
USB Embedded 6 * USB 2.0/1.1
LVDS Onboard 1 * 18-bits Single CH LVDS connectors
Rear Panel I / O 2 * USB 2.0/1.1 ports
1 * COM port
4 * RJ-45 ports
1 * 12V DC-IN JACK
Internal I / O 2 * USB 2.0 header for 4 * USB 2.0 ports
1 * VGA header
1 * COM header (COM2 for RS232/422/485)
1 * GPIO header
1 * CIR header
System/Chassis/NB Fan Connectors
1 * CF card socket (can support both CF card & CF SATA card)
DIY switch x2 (reset & power button)
BIOS AMI 8MB DIP Flash ROM
Form Factor 3.5” SBC form factor (148mmx102mm)
Certificate CE,FCC,RoHS,ERP
Functional Networking Appliance
Temperature Operating within 0~60 centigrade
Storage within -20-85 centigrade
Data sheet Download (PDF)
Data sheet Print view
