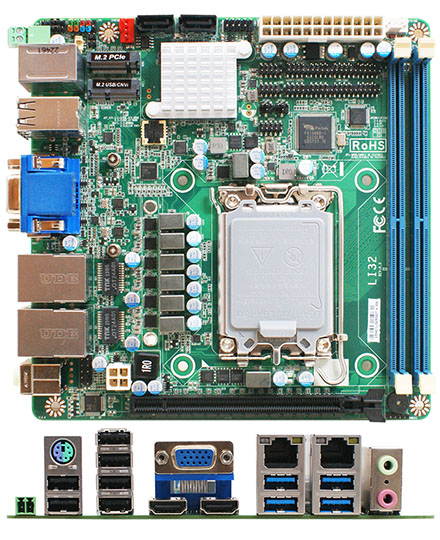

Jetway LI32-H6100 Mini-ITX (Intel Alder Lake-S H610, LGA1700, 10x USB, 2x LAN)

Jetway LI32-H6100 Mini-ITX (Intel Alder Lake-S H610, LGA1700, 10x USB, 2x LAN)
  • Intel Alder Lake-S !
  • 2* GbE LAN !
  • 10* USB !
  • MiniITX !


  • Intel® 14/13/12th LGA1700 Socket Processor (Max.65W TDP)
  • Intel® Alder Lake-S H610 chipset
  • 2* DDR5 5600MHz/4800MHz UDIMM up to 64GB
  • 2* HDMI, 1* VGA
  • 2* REALTEK® RTL8111H GbE
  • 4* USB3.2 (Gen.1), 8* USB2.0, 10* COM(RS232, COM1/2 Co-lay 422/485)
  • 1* M.2 M-key 2242/2280(PCI-Ex4), 1* M.2 E-key 2230, 2* SATAIII
  • Onboard TPM2.0(Option)
  • ATX Power





Share

269.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
Model – LI32-H6100
– LI32-H6102 (TPM2.0)
Form Factor – Mini-ITX (170 * 170mm)
Processor System – Intel® 14th/13th/12th  LGA1700 Socket Core i9/i7/i5/i3/Pentium/Celeron Processor (Max. 65W TDP)
– Intel® Alder lake-S H610 chipset
– AMI Flash ROM BIOS
Memory – Intel® 14/13th CPU support 2* DDR5 5600MHz Dual Channel DIMM up to 64GB
– Intel® 12th CPU support 2* DDR5 4800MHz Dual Channel DIMM up to 64GB
Storage – 2* SATAIII (6Gb/s)
– 1* M.2 M-key (2242/2280 PCI-Ex4 Gen.3 interface)
Expansion – 1* M.2 E-key (2230, CNVi/PCI-Ex1/USB2.0, Support WIFI/BT Module)
– 1* PCI-Ex16 Slot
Ethernet – 2* Realtek® RTL8111H 10/100/1000Mbps
Graphics – Intel® HD Graphics, shared memory
– 2* HDMI2.0 (Max Resolution: 4096×2160@60Hz)
– 1* VGA (Max Resolution: 1920×1080@60Hz)
– Support Triple Displays
Audio – HD audio: Realtek ALC897
Watchdog Timer – From Super I/O to drag RESETCON#
– 256 segments (10sec ~ 255min)
Internal I/O – 2* USB2.0 (PH2.54)
– 8bit GPIO (5V)
– 10* COM (RS232, COM1/2 Co-lay RS232/422/485)
– 2* SATAIII (6Gb/s)
– 1* Chassis intrusion
– 1* FP_ Audio
– 1* FP_JW
– 1* SMBUS
– 1* AT model
– 1* CPU FAN Header (Smart FAN)
– 1* SYSTEM FAN Header (W/O Smart FAN)
External I/O – 4* USB3.2 (Gen.1)
– 6* USB2.0
– 1* PS/2
– 2* HDMI2.0
– 1* VGA
– 2* RJ45
– 1* Line-Out
– 1* MIC
– 1* 2pin Front Power connector
Power ATX PWR (4+24 Pin)
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
Compliance – CE, FCC, LVD, RoHS, REACH (Option)
Temperature – Operating Temperature: 0 ~ 60° C
– Storage Temperature: -20 ~ 70° C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)
OS Support – Windows 10 / 11, Linux
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (ARM) Download (PDF)
Jetway Catalog (Mainboards) Download (PDF)
