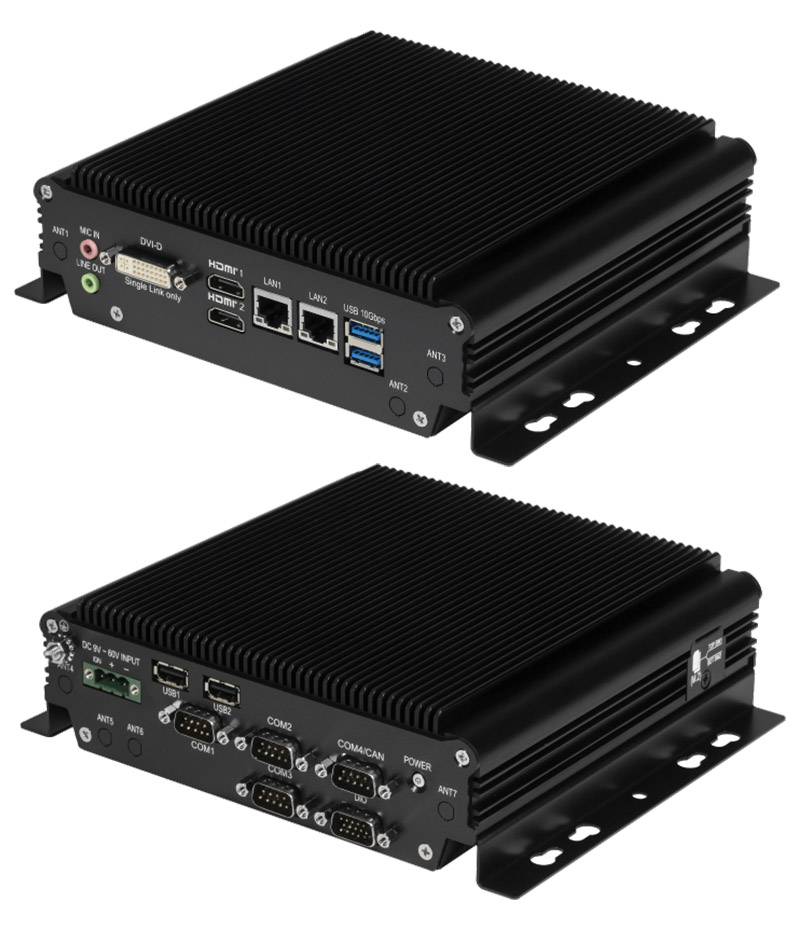

FleetPC-5-C Car-PC (AMD Ryzen R2312, 9-60V Automotive Netzteil, 2x LAN, 2 x HDMI, 1 x DVI-D) [FANLESS]

FleetPC-5-C Car-PC (AMD Ryzen R2312, 9-60V Automotive Netzteil, 2x LAN, 2 x HDMI, 1 x DVI-D) [<b>FANLESS</b>]
  • Fanless !
  • Auto Power On/Off !
  • 2x LAN ! 4x RS232 !
  • VBOX-3123-R2312

  • AMD Ryzen™ Embedded R2312 2C/4T Processor
  • Dual HDMI® supports resolution specified in HDMI® 2.0b
  • 1 x M.2 2280 M Key supports NVMe or SATA SSD
  • 1 x M.2 3042/52 B Key supports USB 3.2 for WWAN w/ Dual SIM
  • 1 x M.2 2230 E Key supports PCIe and USB 2.0 for Wi-Fi/BT
  • 9 – 60VDC Wide Power Input


The AMD Ryzen™ Embedded R2000 Series SoCs boost the Ryzen™ Embedded mid-range processor portfolio to new heights by bringing together the “Zen+” x86 core architecture with high-performance AMD Radeon™ graphics. Compared to the legacy R1000 Series, the R2000 Series provides up to 2X the CPU [more]

Share

998.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart Configurator

  • AMD Ryzen™ Embedded R2312 2C/4T Processor
  • Dual HDMI® supports resolution specified in HDMI® 2.0b
  • 1 x M.2 2280 M Key supports NVMe or SATA SSD
  • 1 x M.2 3042/52 B Key supports USB 3.2 for WWAN w/ Dual SIM
  • 1 x M.2 2230 E Key supports PCIe and USB 2.0 for Wi-Fi/BT
  • 9 – 60VDC Wide Power Input


The AMD Ryzen™ Embedded R2000 Series SoCs boost the Ryzen™ Embedded mid-range processor portfolio to new heights by bringing together the “Zen+” x86 core architecture with high-performance AMD Radeon™ graphics. Compared to the legacy R1000 Series, the R2000 Series provides up to 2X the CPU core count1, Radeon™ graphics supporting up to 4 independent 4K displays and up to 2X the I/O connectivity2 targeting Industrial and Robotics Systems, Machine Vision, IoT, Thin Clients and more.

With thermal design power (TDP) spanning from 12W to 54W, AMD Ryzen™ Embedded R2000 Series SoCs provide thermal agility for compact system designs to help streamline design efficiencies and BOM costs. They provide pin-to-pin package compatibility and a common software foundation with legacy AMD Ryzen™ Embedded R1000 and V1000 Series SoCs while delivering significant performance and connectivity boosts from previous R-Series families.

For a full PC you need in addition :
- 1x 2.5" HDD/SSD oder m.2 SSD
- 1x DDR-IV SO-DDR-RAM (up to 32Gb)

The PC is completely fanless and is equipped with an AMD Ryzen Embedded R2312 CPU.

CPU AMD Ryzen™ Embedded R2312 2C/4T Processorg.
Memory DDR4-2400/2666/3200 SO-DIMM, 8GB~32GB, -40~85°C (ECC Option Available)
Watchdog Watchdog Timer Support, Offer 1 – 255 Step
TPM 2.0
Watchdog 1 ~ 255 Level Reset
Graphics Engine CPU Built-in Graphics AMD Radeon™ Graphics
External I/O Connectors 4 x RS-232/422/485
2 x USB 3.2 Gen 2, 2 x USB 2.0
2 x I210-AT GbE RJ-45 port
2 x HDMI® 2.0b, 1 x DVI-D
*Only supports Single-Link DVI-D cables
4 x DI (9~60V) / 4 x DO (5V / 100mA)
2 x Analog Input (0~60V w/0.5V accuracy)
1 x MIC-in, 1 x Line-out

internal I/O 1 x M.2 3042/52 Key B supports USB 3.2 WWAN w/ Dual SIM 1 x M.2 2230 Key E supports PCIe and USB2.0 Wi-Fi/BT 2 x mPCIe full size slot supports USB 2.0
Antenna 4 x Pre-cut Hole for External SMA Antenna
Storage 1 x M.2 2280 Key M supports NVMe or SATA SSD 1 x 2.5” SATA SSD
Mechanical Aluminum Alloy
Wall-mount, VESA-mount, Din Rail Mounting Kit
Dimensions 210 x 171 x 56 mm (w/ mounting kit) / 1800g
Operating Temp. -40 ~ 60ºC (with SSD), ambient w/ 0.6m/s airflow
Storage Temp. -40°C ~ 85°C
Enviremetal - Relative Humidity 10% RH – 90% RH (non-condensing) - Vibration: MIL-STD-810G, Method 514.6, Procedure I, Category 4 with SSD - Shock: MIL-STD-810G, Method 516.6, Procedure I,
Trucks and semi-trailers=15G (11ms) with SSD - Certification: CE, FCC Class A, UKCA, E-Mark
Power DC 9 – 60V Input ( Ignition Management for Variety Vehicle ) Over voltage and reverse polarity protection OPTIONAL: Internal battery Kit for about 10 mins operating
*UPS backup time varies depending on actual overall system power consumption.
*Operating temperature will be 0~55°C with the battery kit.
Patent No. : M447854 – Build-in Battery
Software Windows 10/11 IoT 64-bit, Ubuntu 20.04/22.04 LTS 64-bit
Data sheet Download (PDF)
Data sheet Print view
